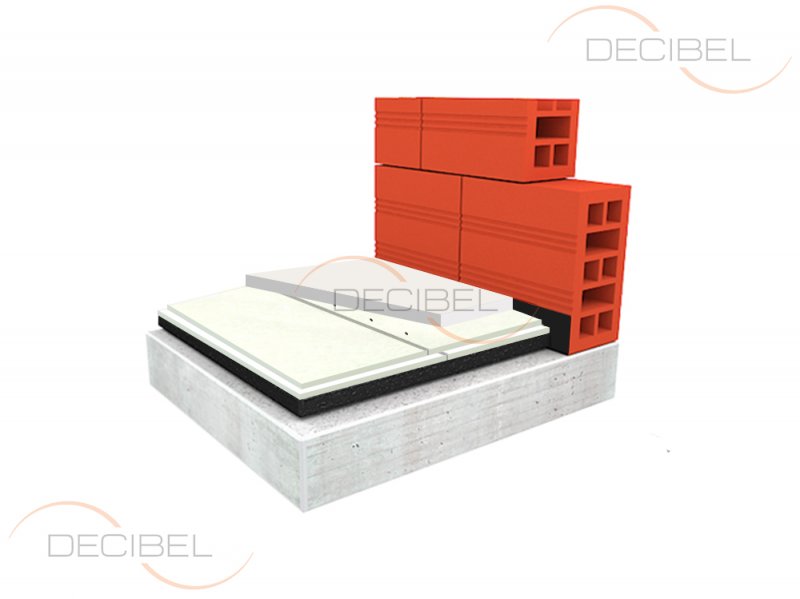

F – MUTE SYSTEM 23 is high effective sound insulation for floors suitable for both impact and airborne noise. Its sound insulating properties are guaranteed by the combination of thick and elastic high-effective layers.

What allows DECIBEL to ensures the quality and efficiency of the system is that its soundproofing parameters are simulated using FEM and after that verified with laboratory tests.

The total thickness of the sound insulating system is 23 mm. Installed over existing floors from reinforced concrete and metal constructions over flat surface also over existing floorings/tiles, old parquet. Over it can be laid ceramic tiles, natural and laminated parquet, carpet and other floorings.

F – MUTE SYSTEM 23 is suitable for:

– Residential premises
– Public premises
– Industrial buildings
– Installation over floors from reinforced concrete and metal constructions over flat surface
– Installation over tiles or old parquet

The installation doesn’t need professional skills, but if you prefer it can done by a professional installer of sound insulation.

Dimensions F – MUTE 23: 1000 x 1200 x 23 mm

Weight F – MUTE 23 panel: 17.4 kg

Panel-wall contacting area: less than 1 %

Air borne sound reduction F – MUTE 23 (used with concrete ceiling slab 15 cm, Dslab = 2240 kg/m3):  61 dB

Impact sound reduction F – MUTE 23 (used with concrete ceiling slab 15 cm, Dslab = 2240 kg/m3):  58 dB
